Compound Microscope with 4K Camera, 40X-2500X Magnification, PC Connection, Plan Optical System, Mechanical Stage, Kentfaith
On Sale
C$919.35
C$1,149.19
20% OFF
Black Friday Deal
Tax Free
&FREE Shipping to Canada
Features
- * Professional 4K Camera Included: Kentfaith lab microscope comes with a 4K electronic eyepiece featuring an 8.3MP Sony sensor and a large 1/1.8" image sensor. It captures up to 99.8% of microscopic details with uncompromising clarity in 3840×2160 UHD resolution. Equipped with both HDMI and Type-C outputs, it enables real-time projection to monitors or PCs. Bonus: a free analysis software is included.
- * Lab-grade Plan Achromatic Optics (40X-2500X): See the difference with 4 lab-grade plan achromatic objectives (4X, 10X, 40X, 100X) that deliver a sharp, flat, and color-accurate image across the entire field. With high-eyepoint 10X and 25X WF eyepieces, this compound microscope offers a 40X-2500X magnification range, perfect for everything from basic biological studies to detailed cellular analysis.
- * Precision Double-Layer Mechanical Stage: The 125×115mm stage comes with specimen clips and a micrometer for 1.0mm precise movement along X and Y axes. Effortlessly explore different parts of your samples and return to exact positions. Low-handed coarse and fine focus, with 20mm coarse travel and 0.002mm fine precision, ensures fast, accurate focusing without repeated adjustments.
- * Advanced Illumination & Abbe Condenser: Achieve perfect lighting and subject control for any specimen. The LED provides cool, even, and flicker-free illumination with a stepless dimmer for fine-tuning brightness. The 1.25 NA Abbe condenser with an iris diaphragm allows you to precisely manage light for optimal contrast and resolution. Includes a filter holder to enhance observation flexibility.
- * Ergonomic Design for Ultimate Comfort: To customize the lab microscope to your viewing comfort, the eyepiece spacing can be easily adjusted from 48mm to 75mm. A ±5 diopter is available on the left ocular tube to compensate for asymmetry, and the ocular tubes are angled at 30° to accommodate a seated position without neck strain. The head can also be rotated 360° to accommodate multiple users.
C$919.35
Shipping
&FREE Shipping to Canada
Sale
Buy More, Save More
Buy 2 Save 15%
Buy 3 Save 18%
Buy 4 Save 20%
Buy 6+ Save 25%
Hurry — Discount Ends Soon!
Buy 2 Save 15%
Buy 3 Save 18%
Buy 4 Save 20%
Buy 6+ Save 25%
Hurry — Discount Ends Soon!
Kentfaith Trinocular Compound Microscope - Your Comprehensive Tool for Professional Research
- Engineered for precision and clarity, this advanced lab microscope integrates a professional plan optical system (40X–2500X) with a mechanical stage and an included 4K imaging camera for data-rich visualization and analysis. Ideal for academic research, laboratory documentation, and scientific presentations, it provides researchers and educators with a powerful platform for detailed observation, measurement, and publication-quality imaging.
- Advanced Features:
- ㆍ4K Microscope camera with 8.3MP Sony sensor
- ㆍ40X-2500X magnification
- ㆍ4 DIN plan achromatic objectives
- ㆍWide-field 10X, 25X eyepieces
- ㆍDouble-layer mechanical stage
- ㆍDirect PC connection, FREE measurement tool
- ㆍ1.25 Numerical aperture for oil immersion, and an iris diaphragm
- ㆍ48–75mm interpupillary distance
- ㆍ±5° Diopter tuning
Enjoy a Bright, Distortion-free Image Every Time
4 DIN achromatic objectives are pre-installed on a rotating turret, working with 10X and 25X eyepieces to provide 6 magnification levels: 40X, 100X, 250X, 400X, 1000X, and 2500X. Whether you’re observing the fine details of plant cell mitosis or the lively movement of plankton, you’ll always find the perfect zoom. The spring-loaded 40X and 100X objectives prevent slide damage and protect the lenses during close focusing.
Real-Time Display & Professional Software Included
This camera features powerful dual outputs: use the HDMI port to stream a live, lag-free feed directly to any TV, monitor, or projector, perfect for classroom demonstrations or client consultations. Meanwhile, the USB port connects to your PC or Mac to access professional imaging software. Go beyond viewing to perform precise measurements, annotations, and image processing for publication-ready reports.
Capture Journal-quality Images
Capture your work with the clarity it deserves. We've included an 8.3MP microscope camera, featuring a large 1/1.8” Sony CMOS sensor, at no extra cost. It renders your specimens with lifelike detail in 4K resolution (3840x2160), revealing fine structures like neuronal synapses and faint fluorescent markers with brilliant precision. You’ll produce visually spectacular images that are perfect for impactful presentations, scientific posters, and journal submissions.
Lab-grade Achromatic Objectives
All objectives are crafted from solid copper, offering superior durability compared to plastic components. The 4 plan achromatic lenses (4X, 10X, 40X, 100X oil immersion) greatly reduce color fringing and deliver edge-to-edge sharp, flat-field clarity for professional observations.
Personalized Clarity for Every User
Features ±5 diopter adjustment and 48–75mm adjustable interpupillary distance, allowing personalized setup for different users. The fully optical glass eyepieces with coated lenses deliver exceptional image clarity and refined craftsmanship for a truly professional viewing experience.
Bright, Daylight-Balanced Illumination
The LED sub-stage lighting with a stepless dimmer provides cool, energy-efficient illumination. The light-source is daylight balanced to produce natural colors for imaging. The 1.25 N.A. Abbe condenser with an iris diaphragm gathers more light and sharpens the image.
Ergonomic Trinocular Head
The trinocular head features a 30° ergonomic tilt to reduce neck strain and 360° rotation for flexible viewing from any angle. The camera detaches to reveal a 25mm trinocular port (23.2mm adapter included), ensuring compatibility with a wide range of cameras and digital eyepieces.
Explore with Precision and Ease
It features a double-layer mechanical stage measuring 125×115mm, with a smooth movement range of 76×52mm. Its 1.0mm stage division value allows you to record coordinates and return to exact points of interest for further analysis — an essential advantage when working at high magnifications.
Quick & Sharp Focus
With low-position coaxial coarse and fine focus knobs on both sides, our compound microscope provides a 20mm coarse travel and a 0.002mm fine precision. You can quickly find the target and pinpoint the details, saving you time and frustration during long sessions.

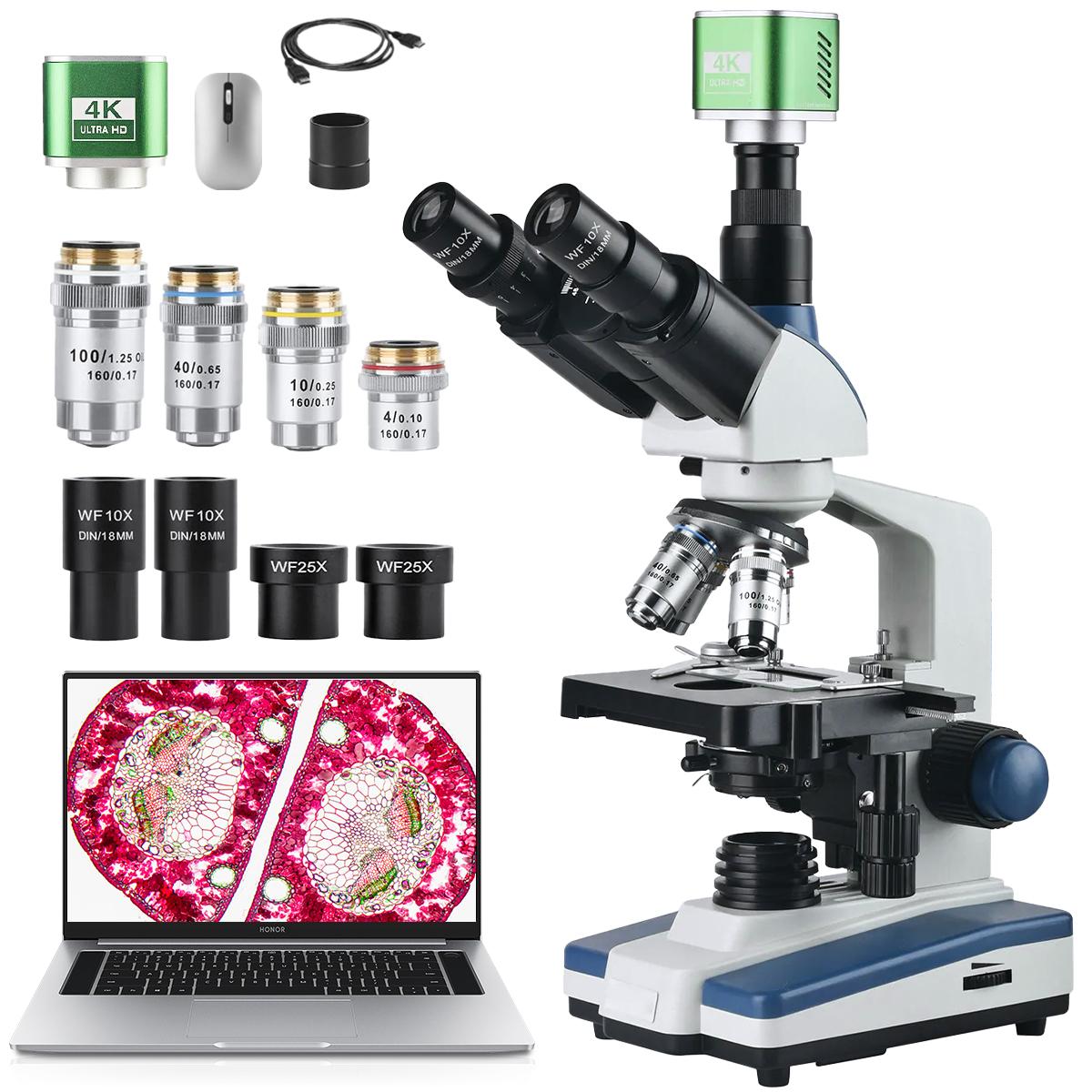

What You Will Get:
- 1 x Lab Microscope
- 2 x WF 10X Eyepiece
- 2 x WF 25X Eyepiece
- 1 x 23.2mm Connector
- 1 x 4K Microscope Camera
- 1 x HDMI Cable
- 1 x USB Cable
- 1 x Power Cable
- 1 x Mouse
- 1 x Dust Cover
- 1 x Calibration Slide
- Worry-Free Purchase
- If you run into any issues with our compound microscope, feel free to contact us immediately. Our friendly customer support team is ready to help you with any questions or concerns, and we promise to get back to you within 1 working day. We appreciate you choosing Kentfaith, and we're committed to ensuring your satisfaction every step of the way.
| Specification | |
|---|---|
| Image Resolution | 4K (30fps), 1920×1080 (30fps) |
| Image Orientation | Horizontal and vertical flipping |
| Image Format | JPG/PNG/BMP, USB storage supported |
| Storage Medium | U disk, mouse control, camera control |
| Crosshair Measurement | Supports various line colors (white, red, green, blue, yellow, black, cyan, orange, purple, gray) |
| Measurement Display | Pixel, μm, mm, cm, inch, mil |
| Digital Zoom | 1X–6X continuous zoom |
| Comparison Display | Dual/quad split screen |
| Measurement Functions | Line, parallel lines, rectangle, polygon, angle, circle, arc, diameter, radius, distance, arbitrary lines, text labeling |
| Optical Magnification | 40X, 100X, 250X, 400X, 1000X, 2500X |
| Digital Magnification | 308X–7705X |
| Optical System | Finite optical system |
| Eyepieces | High-eyepoint wide-angle WF10X/DIN18mm, WF25X/8mm |
| Objectives | Achromatic objectives Objective Specifications: 4X/0.1 WD 36.5mm, 10X/0.25 WD 7.6mm, 40X/0.65 WD 0.53mm, 100X/1.25 WD 0.13mm |
| Viewing Head | Trinocular head inclined at 30°, 360° rotatable, interpupillary distance 48–75mm |
| Focusing Mechanism | Coarse and fine coaxial focusing, coarse travel 20mm, fine division 0.002mm |
| Stage | Double-layer mechanical stage, size 125mm×115mm, movement range 76mm×52mm, with specimen holder |
| Revolving Nosepiece | Quadruple nosepiece with steel balls for positioning |
| Power Supply | External power switch, input AC100–240V, output DC 5V/1A |
| Condenser | NA=1.25 Abbe condenser with iris diaphragm and filter holder |
| Illumination | LED light source, 1W, flicker-free |
| Camera Adapter | 1X trinocular interface + 1 x 23.2mm connector, compatible with 25mm/23.2mm camera or digital eyepiece |
| Image Sensor | 8.3MP |
| Output Interface | HDMI/USB |
| Sensor Type | 1/1.8", SONY IMX334 |
| Languages | Supports Chinese, English, Korean |
| Video Resolution | 3840×2160@30FPS, 1920×1080@30FPS |
| Pixel Size | 2.0μm×2.0μm |
Reviews (0)
- All Reviews
- Image
Great value
Everything works as promised.
Had this set up for photography and even video recording within minutes, with images/video displaying on a desk computer's large monitor.
I have 5 microscopes, including a professional/lab instrument that cost many times what this one cost ... and I must say, for what you get and for what you can do with this instrument, it is a steal.
Well packaged and even came with a soft case for everything.
Glad to have this one!
Had this set up for photography and even video recording within minutes, with images/video displaying on a desk computer's large monitor.
I have 5 microscopes, including a professional/lab instrument that cost many times what this one cost ... and I must say, for what you get and for what you can do with this instrument, it is a steal.
Well packaged and even came with a soft case for everything.
Glad to have this one!
31/10/2025
Best microscope on the market from Kentfaith
We have used this microscope for over a month now on a daily basis and it does a fantastic job. It is extremely clear with no distortion at highest power. We bought this microscope for our kids to look at biology histology and microbiology slides.
Highly recommended.
Highly recommended.
30/10/2025
clear optics and easy to use
This microscope works great and easy to use. The brightness is good and the images are clear. The body feels very sturdy and well made.Satisfied!
28/10/2025
happy with my purchase
I was looking for a microscope to share my love of science with my son. As a photographer, I know the importance of "good glass" so I decided that it would be better to buy something with superior optics now that he can grow up to enjoy and that I would enjoy using in the meantime, instead of a toy microscope that would frustrate both of us. I'm very pleased with this microscope. You can tell right away that it's built to last, all the parts are sturdy and the focusing is super sharp.
25/10/2025
Good professional, introductory microscope
With literally tens of thousands of professional hours experience with microscopes over several decades, this microscope is an excellent for home use, students high school through grad school, medical school and beyond. Beginners will need a bit of training to enjoy the many features. Excellent training videos online these days.
21/10/2025
Gift
I bought this scope as a gift for my husband. He loves it! He’s been trying to find things to look at. It’s not as big as professional/college level microscopes, but it functions the same, is great for the home scientist who’s looking for germs and microscopic movement! Picture quality is good once you find what you’re looking for on the slide. It takes practice, but we’ve enjoyed looking at different things with it.
19/10/2025
Amazing microscope, totally worth the price
I just got this microscope yesterday, and it far exceeded my expectations. The controls are easy to learn, the fine focus makes a huge difference in getting perfect shots, etc. It's very sturdy, made with high quality materials, the 4K camera is extremely helpful so you can record practically every specimen you want to, and it's the perfect size for a microscope. Overall 10/10 microscope, completely worth the money.
16/10/2025
Good quality materials
This microscope is top-notch. The zoom goes up to 2,500x, and the clarity is amazing even at full zoom. Every little detail is sharp, which makes it perfect for close-up work. The build feels solid, and it’s easy to use. The focus adjusts smoothly, so you can get a clear image without much hassle.
14/10/2025
Great product for the kids
This product contains all the essentials it needs for it. It is well protected and everything worked well. Quality seems good no complaints. Great gadget for the kids to learn
09/10/2025
Worth every penny!
I haven't found anything negative to say about this even a year later! My daughter is going to love the science lessons coming out of this machine! The digital imager is extremely helpful, and I took lots of amazing photos with it!
06/10/2025
FAQs
A
Yes, you can replace the micrsocope camera if needed. The trinocular port supports 25mm eyepieces tubes, and the package comes with a 23.2mm connector, allowing you to connect 25mm or 23.2mm digital eyepieces or cameras.
Show More
A
It operates on AC100–240V input with DC 5V/1A output, compatible with international voltage standards.
Show More
A
A3: Kentfaith lab microscope supports both HDMI and USB output, making it easy to connect to monitors, projectors, or computers for live observation and recording.
Show More
A
It’s equipped with a high-performance SONY IMX334 1/1.8" sensor with 8.3 megapixels, providing excellent color accuracy, low noise, and high-resolution 4K imaging.
Show More
A
Kentfaith compound microscope features a 1W LED light source with adjustable brightness, providing stable, flicker-free lighting for both brightfield and low-light observations.
Show More
