Compound Microscope with 11.6-inch Smart Screen, 40X-2500X Magnification, PC Connection, Plan Optical System, Mechanical Stage, Kentfaith
On Sale
C$1,476.54
C$1,845.68
20% OFF
Black Friday Deal
Tax Free
&FREE Shipping to Canada
Features
- * 11.6" Smart Display with Sony Camera: Say goodbye to eye strain. This lab microscope’s massive 11.6” HD screen offers a comfortable, clear view for individuals or groups. The integrated 2MP Sony sensor lets you capture stunning photos and videos with one click, and you can easily connect to a PC for even larger-screen analysis with the included full-featured software (for free!).
- * Lab-grade Plan Achromatic Optics (40X-2500X): See the difference with 4 lab-grade plan achromatic objectives (4X, 10X, 40X, 100X) that deliver a sharp, flat, and color-accurate image across the entire field. With high-eyepoint 10X and 25X WF eyepieces, this compound microscope offers a 40X-2500X magnification range, perfect for everything from basic biological studies to detailed cellular analysis.
- * Precision Double-Layer Mechanical Stage: The 125×115mm stage comes with specimen clips and a micrometer for 1.0mm precise movement along X and Y axes. Effortlessly explore different parts of your samples and return to exact positions. Low-handed coarse and fine focus, with 20mm coarse travel and 0.002mm fine precision, ensures fast, accurate focusing without repeated adjustments.
- * Advanced Illumination & Abbe Condenser: Achieve perfect lighting and subject control for any specimen. The LED provides cool, even, and flicker-free illumination with a stepless dimmer for fine-tuning brightness. The 1.25 NA Abbe condenser with an iris diaphragm allows you to precisely manage light for optimal contrast and resolution. Includes a filter holder to enhance observation flexibility.
- * Ergonomic Design for Ultimate Comfort: To customize the lab microscope to your viewing comfort, the eyepiece spacing can be easily adjusted from 48mm to 75mm. A ±5 diopter is available on the left ocular tube to compensate for asymmetry, and the ocular tubes are angled at 30° to accommodate a seated position without neck strain. The head can also be rotated 360° to accommodate multiple users.
C$1,476.54
Shipping
&FREE Shipping to Canada
Sale
Christmas Buy More, Save More!
Buy 2 Save 15%
Buy 3 Save 18%
Buy 4 Save 20%
Buy 6+ Save 25%
Hurry — Discount Ends Soon!
Buy 2 Save 15%
Buy 3 Save 18%
Buy 4 Save 20%
Buy 6+ Save 25%
Hurry — Discount Ends Soon!

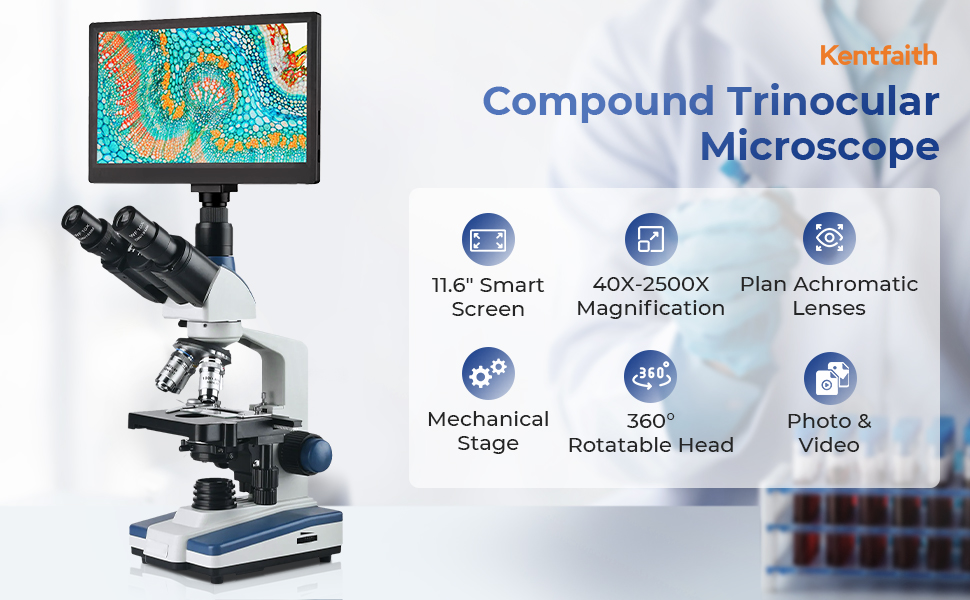

Kentfaith Trinocular Compound Microscope with 11.6-inch Display
- Discover a new way to explore with this advanced lab microscope featuring a massive 11.6" smart display, a built-in Sony HD camera, and a 40x-2500x optical system. From live specimen observation to detailed image analysis, every feature is crafted for precision, comfort, and clarity. Perfect for labs, classrooms, clinics, and research teams, it transforms scientific study into a truly visual experience.
- Advanced Features:
- ㆍ11.6-inch smart display with a Sony camera
- ㆍ40X-2500X magnification
- ㆍ4 DIN plan achromatic objectives
- ㆍWide-field 10X, 25X eyepieces
- ㆍDouble-layer mechanical stage
- ㆍDirect PC connection, FREE measurement tool
- ㆍ1.25 Numerical aperture for oil immersion, and an iris diaphragm
- ㆍ48–75mm interpupillary distance
- ㆍ±5° Diopter tuning
Enjoy a Bright, Distortion-free Image Every Time

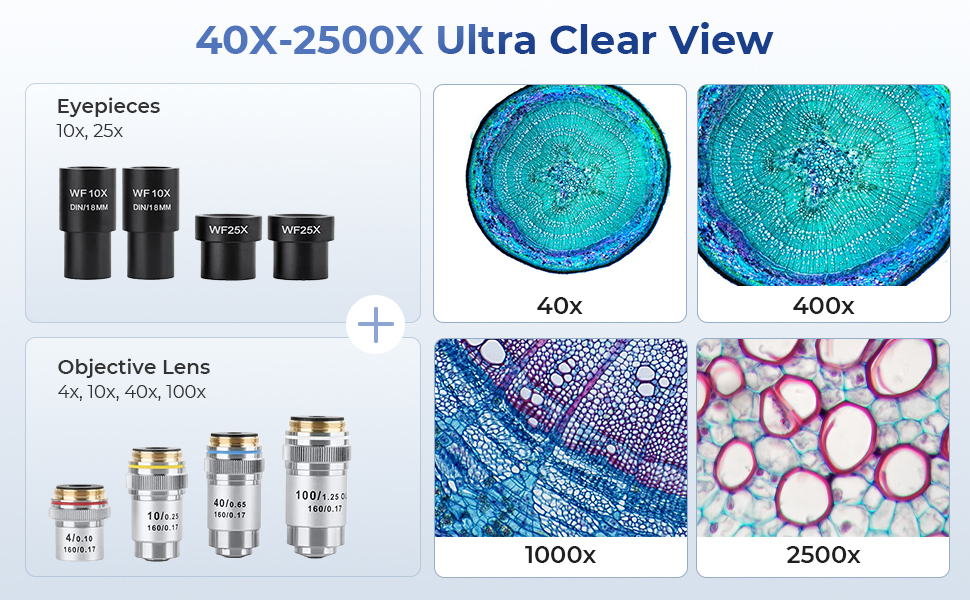

4 DIN achromatic objectives are pre-installed on a rotating turret, working with 10X and 25X eyepieces to provide 6 magnification levels: 40X, 100X, 250X, 400X, 1000X, and 2500X. Whether you’re observing the fine details of plant cell mitosis or the lively movement of plankton, you’ll always find the perfect zoom. The spring-loaded 40X and 100X objectives prevent slide damage and protect the lenses during close focusing.

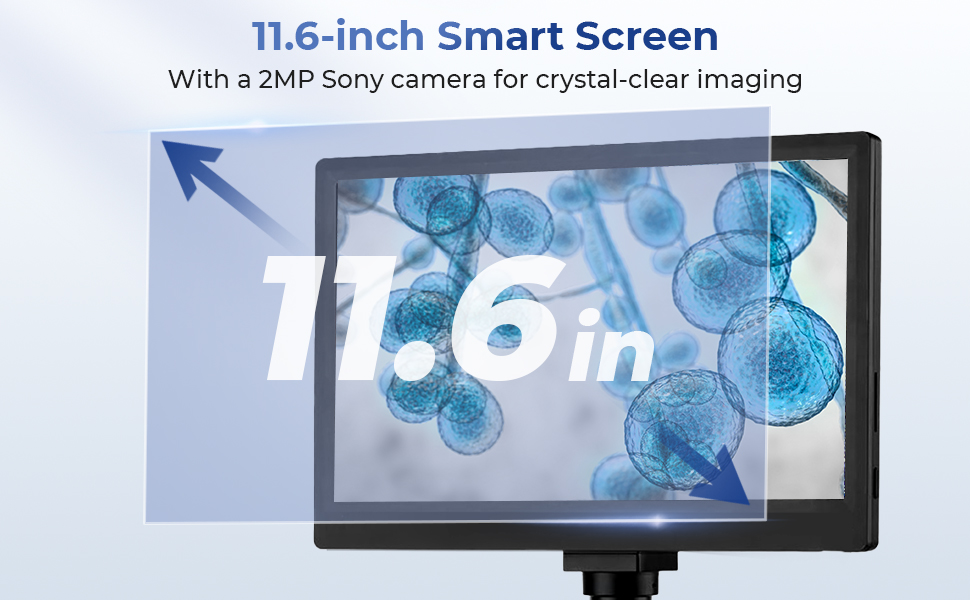

11.6” Smart Display - Your digital imaging station
The stunning 11.6” HD display, powered by an integrated 2MP Sony sensor, lets you see and save your work with incredible ease, making it ideal for group demonstrations in classrooms or consultations in clinics. You can take full control of your analysis with on-screen tools to zoom, mirror, freeze the frame, and fine-tune image parameters like color temperature and contrast.

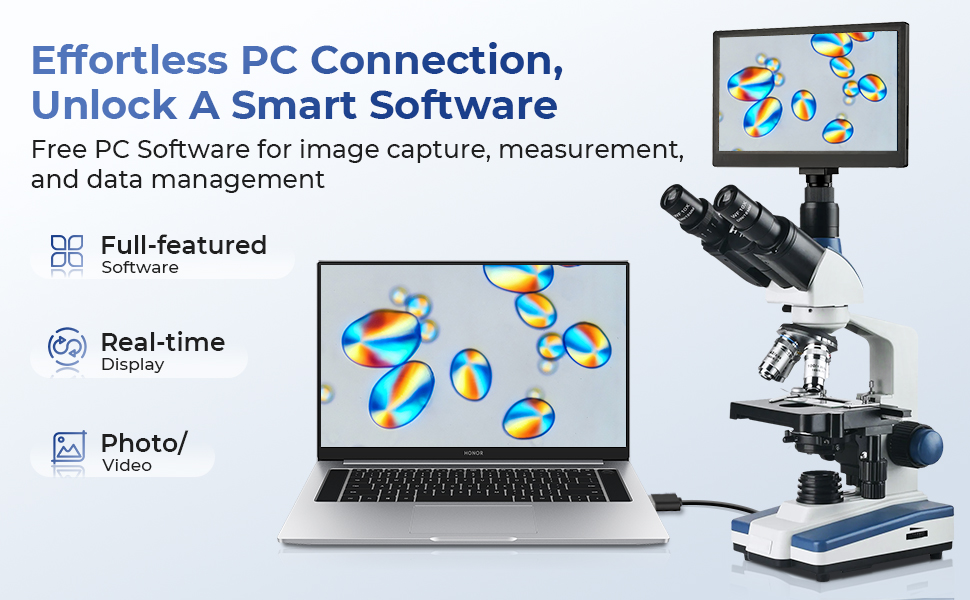

Real-Time Display & Professional Software Included
The screen features a USB output, allowing direct connection to a computer or monitor without an external digital eyepiece. Enjoy zero-lag image transmission — every specimen adjustment appears instantly on the big screen. Comes with professional measurement software for image editing, analysis, and data recording — perfect for researchers, teachers, and hobbyists alike.
Lab-grade Achromatic Objectives
All objectives are crafted from solid copper, offering superior durability compared to plastic components. The 4 plan achromatic lenses (4X, 10X, 40X, 100X oil immersion) greatly reduce color fringing and deliver edge-to-edge sharp, flat-field clarity for professional observations.

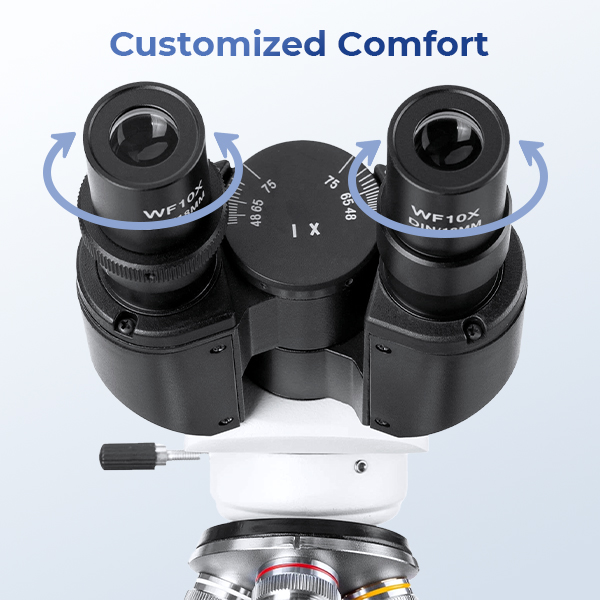

Personalized Clarity for Every User
Features ±5 diopter adjustment and 48–75mm adjustable interpupillary distance, allowing personalized setup for different users. The fully optical glass eyepieces with coated lenses deliver exceptional image clarity and refined craftsmanship for a truly professional viewing experience.
Bright, Daylight-Balanced Illumination

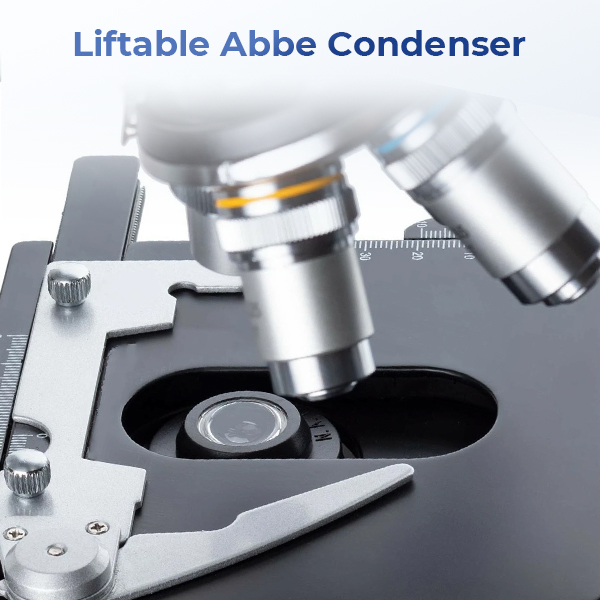

The LED sub-stage lighting with a stepless dimmer provides cool, energy-efficient illumination. The light-source is daylight balanced to produce natural colors for imaging. The 1.25 N.A. Abbe condenser with an iris diaphragm gathers more light and sharpens the image.

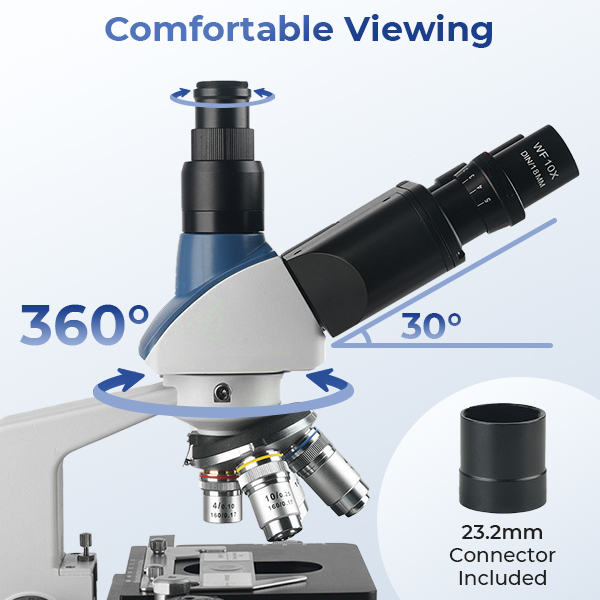

Ergonomic Trinocular Head
The trinocular head features a 30° ergonomic tilt to reduce neck strain and 360° rotation for flexible viewing from any angle. The screen detaches to reveal a 25mm trinocular port (23.2mm adapter included), ensuring compatibility with a wide range of cameras and digital eyepieces.

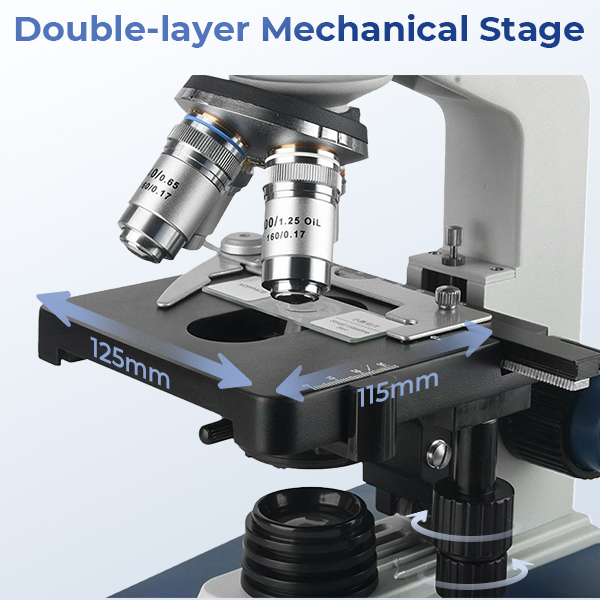

Explore with Precision and Ease
It features a double-layer mechanical stage measuring 125×115mm, with a smooth movement range of 76×52mm. Its 1.0mm stage division value allows you to record coordinates and return to exact points of interest for further analysis — an essential advantage when working at high magnifications.

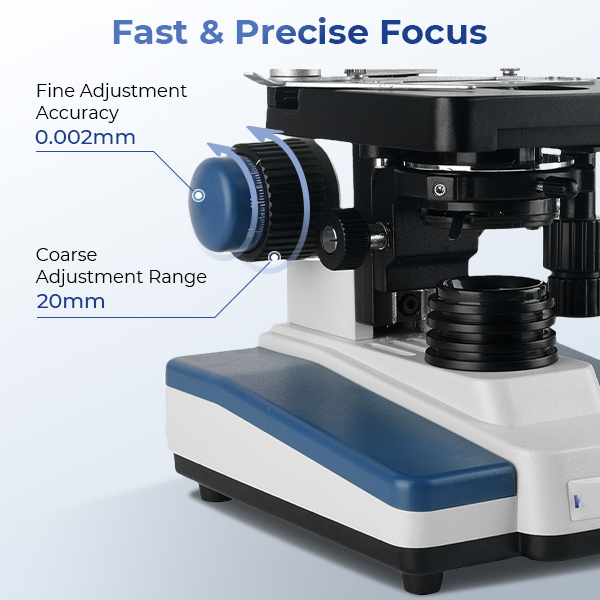

Quick & Sharp Focus
With low-position coaxial coarse and fine focus knobs on both sides, our compound microscope provides a 20mm coarse travel and a 0.002mm fine precision. You can quickly find the target and pinpoint the details, saving you time and frustration during long sessions.
What You Will Get:
- 1 x Lab Microscope
- 2 x WF 10X Eyepiece
- 2 x WF 25X Eyepiece
- 1 x 23.2mm Connector
- 1 x 11.6-inch Smart Display
- 1 x USB Cable
- 1 x Power Cable
- 1 x Mouse
- 1 x Dust Cover
- Worry-Free Purchase
- If you run into any issues with our compound microsocpe, feel free to contact us immediately. Our friendly customer support team is ready to help you with any questions or concerns, and we promise to get back to you within 1 working day. We appreciate you choosing Kentfaith, and we're committed to ensuring your satisfaction every step of the way.
| Specification | |
|---|---|
| Optical Magnification | 40X, 100X, 250X, 400X, 1000X, 2500X |
| Digital Magnification | 166X–4150X |
| Optical System | Finite optical system |
| Eyepieces | High-eyepoint wide-angle WF10X/DIN18mm, WF25X/8mm |
| Objectives | Achromatic objectives Objective Specifications: 4X/0.1 WD 36.5mm, 10X/0.25 WD 7.6mm, 40X/0.65 WD 0.53mm, 100X/1.25 WD 0.13mm |
| Viewing Head | Trinocular head inclined at 30°, 360° rotatable, interpupillary distance 48–75mm |
| Focusing Mechanism | Coarse and fine coaxial focusing, coarse travel 20mm, fine division 0.002mm |
| Stage | Double-layer mechanical stage, size 125mm×115mm, movement range 76mm×52mm, with specimen holder |
| Revolving Nosepiece | Quadruple nosepiece with steel balls for positioning |
| Power Supply | External power switch, input AC85–240V, 50–60Hz |
| Condenser | NA=1.25 Abbe condenser with iris diaphragm and filter holder |
| Illumination | LED light source, 1W, flicker-free |
| Camera Adapter | 1X trinocular interface + 1 x 23.2mm connector, compatible with 25mm/23.2mm camera or digital eyepiece |
| Image Sensor | 2.0MP built-in display camera |
| Output Interface | USB2.0 |
| Sensor Brand | Sony |
| Sensor Size | 1/2.5" |
| Resolution | HDMI output 1920×1080@60FPS, USB output 1920×1080@30FPS |
| Pixel Size | 2.0μm×2.0μm |
| Exposure Time | 0–33ms |
| White Balance | Auto/manual, one-click adjustment |
| Image Adjustment | Brightness, contrast, hue, sharpness, saturation, gamma, color temperature |
| Camera Functions | Photo, video, freeze, zoom, exposure, color, language, date/time, crosshair, grid |
| Measurement Functions | Line, parallel line, rectangle, polygon, angle, circle, arc, text labeling USB Functions: The microscope is equipped with a 1.61" built-in display and one USB port. Supports image capture, video recording, and measurement via mouse. When connected to a computer via USB, image display will be disabled on the built-in screen. Professional software is provided for computer image viewing. |
Reviews (0)
- All Reviews
- Image
Great Microscope! Screen is great for keeping you from having to squint!
I bought this microscope because of it's price, and because I get tired of having to squint while doing my work...this microscope solved all my issues! The plate slider in conjunction with the screen makes analyzing plates so easy! Not having to squint, and being able to sit back, and relax your eyes is priceless! Also, for the price it can't be beat! I have posted this to my Facebook group of 7500+ mycologists, and I know of at least two members of my group that ended up buying this scope! Great price, great product quality, and great features...what's not to love?
31/10/2025
Best microscope on the market
We have used this microscope for over a month now on a daily basis and it does a fantastic job. It is extremely clear with no distortion at highest power. We bought this microscope for our kids to look at biology histology and microbiology slides. Highly recommended!
30/10/2025
Clear images and easy to use
This microscope works great and easy to use. The brightness is good and the images are clear. The body feels very sturdy and well made.Satisfied!
28/10/2025
Excellent quality for the price
It has been such a fun and fascinating project to see things under the microscope. We've been viewing all kinds of things around the house and the kids are really enjoying it as a science lesson. Really like that it has a screen to view the slides and different levels to magnify. Super cool!
25/10/2025
Excellent Compound Trinocular Microscope
I recently purchased the compound trinocular microscope with a magnification range of 40X-2500X, and I must say, it has exceeded my expectations. The microscope is equipped with a 11.6-inch LCD screen, which adds convenience and enhances the overall user experience. Excellent clarity, user-friendly operation, perfect for research and educational purposes. Highly recommended!
21/10/2025
Love its huge screen
I was looking for a microscope to share my love of science with my son. As a photographer, I know the importance of "good glass" so I decided that it would be better to buy something with superior optics now that he can grow up to enjoy and that I would enjoy using in the meantime, instead of a cheap toy microscope that would frustrate both of us. I'm very pleased with this microscope. You can tell right away that it's built to last, all the parts are sturdy and the focusing is super sharp.
19/10/2025
Gift
I bought this as a gift for my husband. He loves it! He’s been trying to find things to look at. It’s not as big as professional/college level microscopes, but it functions the same, is great for the home scientist who’s looking for germs and microscopic movement! Picture quality is good once you find what you’re looking for on the slide. It takes practice, but we’ve enjoyed looking at different things with it.
14/10/2025
Amazing microscope, totally worth the price
I just got this microscope yesterday, and it far exceeded my expectations. The controls are easy to learn, the fine focus makes a huge difference in getting perfect shots, etc. It's very sturdy, made with high quality materials, the LED is extremely bright so you can see practically every specimen you want to, and it's the perfect size for a microscope. Overall 10/10 microscope, completely worth the money.
09/10/2025
Good quality materials
This microscope is top-notch. The zoom goes up to 2,500x, and the clarity is amazing even at full zoom. Every little detail is sharp, which makes it perfect for close-up work. The build feels solid, and it’s super easy to use. The focus adjusts smoothly, so you can get a clear image without much hassle.
06/10/2025
Great microscope for the kids
This product contains all the essentials it needs for it. It is well protected and everything worked well. Quality seems good no complaints. Great gadget for the kids to learn
03/10/2025
FAQs
A
The free software supports line, parallel line, rectangle, polygon, angle, circle, arc, and text labeling for scientific analysis or industrial inspection.
Show More
A
Kentfaith compound microscope is equipped with a 1/2.5" 2MP SONY sensor, delivering high color fidelity and image sharpness.
Show More
A
Yes. It connects via USB 2.0, allowing you to capture images, record videos, and perform measurements on your computer with professional software.
Show More
A
Yes. It supports HDMI output with a resolution of 1920×1080@60FPS for clear, real-time display on external monitors or projectors.
Show More
A
Kentfaith compound microscope uses an external power adapter (AC85–240V, 50–60Hz).
Show More
